Farm-Maxx FSBM Series Sickle Bar Mowers

$4,399.00
size

Notify me when back in stock

Farm-Maxx FSBM Series Sickle Bar Mowers

Farm-Maxx FSBM Series Sickle Bar Mowers are designed for farmers and landowners who need clean, precise cutting for hay fields, pastures, pond banks, ditch banks, fence lines, and other areas where maneuverability and cutting control matter.

Built for compact and utility tractors, the FSBM Series combines rugged, straightforward construction with a double-action cutting system for smooth, efficient mowing. With working widths from 60" to 108" and both manual and hydraulic folding options, there is an FSBM model for everything from smaller properties to larger hay and acreage operations.

Ideal Applications

  • Hay and forage cutting
  • Pasture maintenance
  • Small farms and homesteads
  • Pond and ditch bank mowing
  • Fence lines and field edges
  • Roadside mowing
  • Larger acreage maintenance

Key Features

Double-Action Cutting System

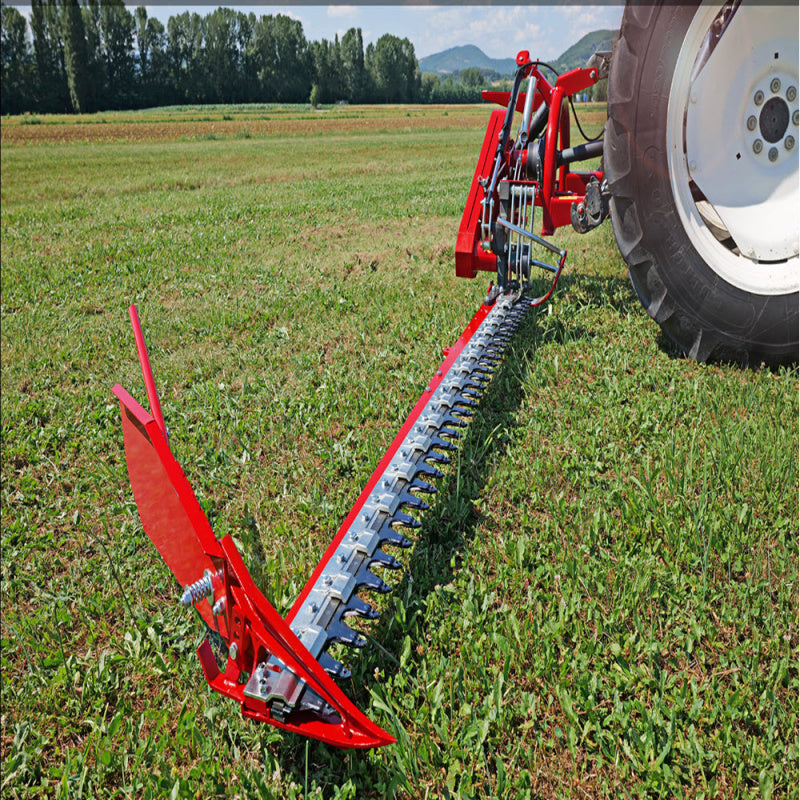

The FSBM Series uses a double-action sickle cutting system that provides a clean, scissor-like cut through hay, grass, and light vegetation. The design helps provide consistent cutting performance while reducing clogging in demanding field conditions.

Manual or Hydraulic Folding

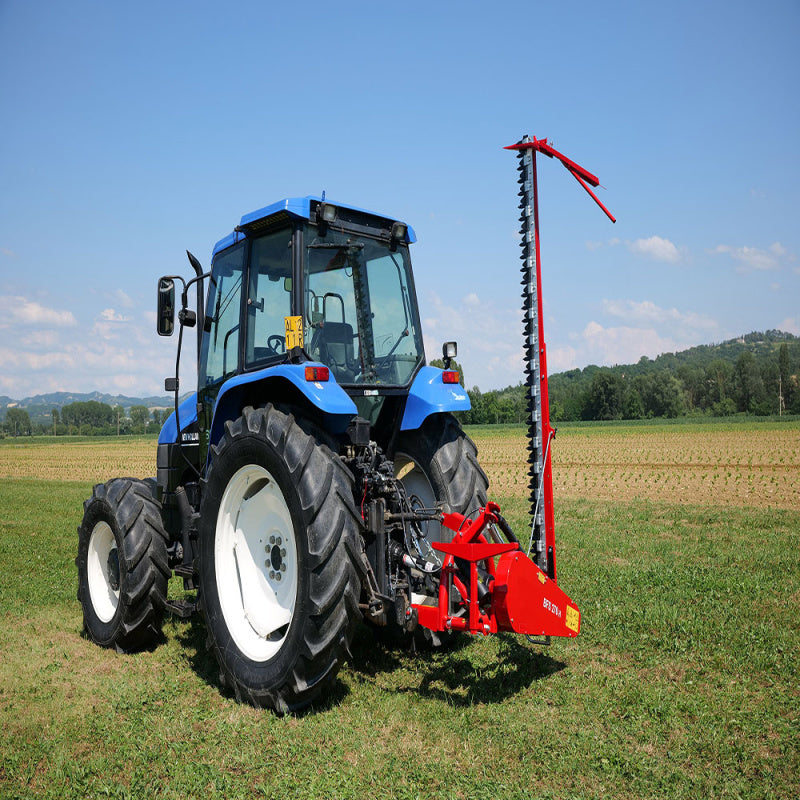

Select models are available with either manual or hydraulic folding, allowing you to choose the configuration that best matches your tractor and operation. Hydraulic models provide added convenience when transitioning between mowing and transport positions.

Wide Cutting Angle

With a cutting range of approximately +90° to -45°, the FSBM Series can handle more than flat-field mowing. The adjustable cutting angle makes these mowers especially useful along pond banks, ditch banks, slopes, fence lines, and uneven terrain.

Easy-Service Cutting Guards

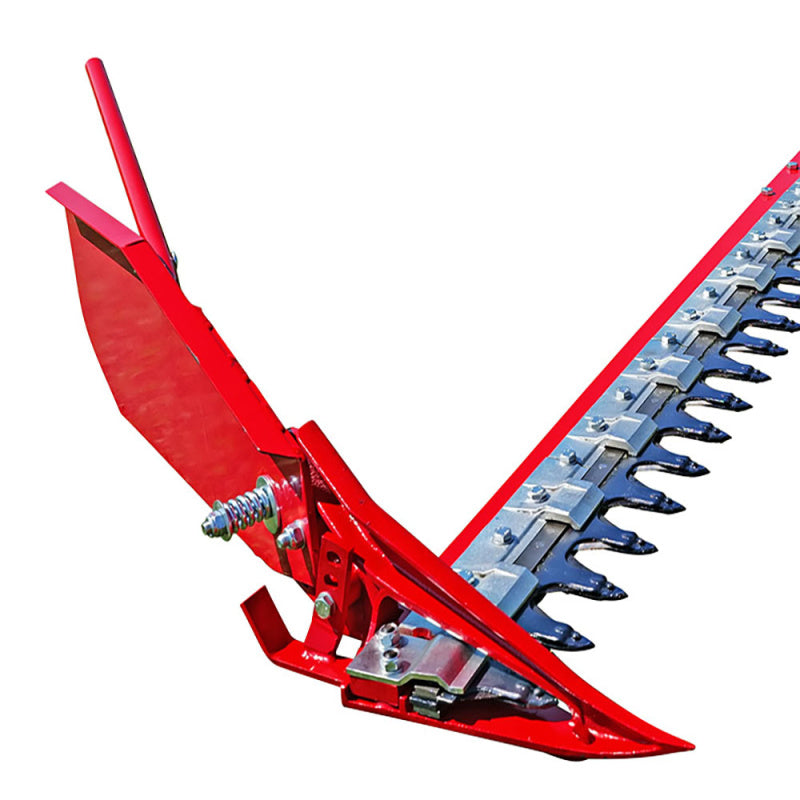

Replaceable cutting guards are designed for straightforward servicing and replacement, helping minimize downtime when maintenance is required.

Heavy-Duty Safety Release

A heavy-duty breakaway safety-release system helps protect the mower and tractor if the cutting bar encounters an unexpected obstacle during operation.

Extra Blade Bar Included

An extra blade bar is included, giving operators a convenient replacement on hand when servicing the mower during the cutting season.

Standard Features

  • Double-action cutting system
  • Manual or hydraulic folding depending on model
  • Approximately +90° to -45° cutting-angle capability
  • Heavy-duty safety-release system
  • Replaceable cutting guards
  • Extra blade bar included
  • Heavy-duty PTO driveline
  • Durable powder-coat finish
  • Category I / II hitch compatibility
  • Rugged, low-maintenance construction

Choose Your Farm-Maxx FSBM Sickle Bar Mower

FSBM 5 Mini Manual / Hydraulic – 60" Working Width
Designed for compact tractors and smaller properties. A great choice for small hay operations, field edges, pond banks, and areas where maneuverability is important.

FSBM 5 Manual / Hydraulic – 66" Working Width
A versatile general-purpose option for pasture maintenance, hay cutting, and field mowing. Available in manual or hydraulic configurations.

FSBM 7H – 84" Working Width
A wider hydraulic-fold model designed for larger hay fields, roadside maintenance, and operators who want increased cutting capacity.

FSBM 9H – 108" Working Width
The largest model in the series, providing a 9-foot cutting width for larger acreage and higher-capacity mowing operations.

Farm-Maxx FSBM Sickle Bar Mower Specifications

Compare working width, horsepower requirements, folding configuration, hitch compatibility, cutting angle, and weight to find the right FSBM model for your tractor.

Specification FSBM 5 Mini FSBM 5 FSBM 7H FSBM 9H
Working Width 60" 66" 84" 108"
Minimum Horsepower 20 HP 35 HP 35 HP 50 HP
Fold Type Manual / Hydraulic Manual / Hydraulic Hydraulic Hydraulic
Hitch Cat. I / II Cat. I / II Cat. I / II Cat. I / II
Max. Upward Cutting Angle +90° +90° +90° +90°
Max. Downward Cutting Angle -45° -45° -45° -45°
Approx. Weight 441 lbs 565 lbs 633 lbs 710 lbs

Mobile: Swipe left or right on the specification table to compare models.

Which FSBM Model Is Right for You?

Small properties & compact tractors: FSBM 5 Mini
General hay & pasture mowing: FSBM 5
Larger fields & roadside mowing: FSBM 7H
Wide acreage & high-capacity mowing: FSBM 9H

Precision Cutting for Hay, Pastures & Property Maintenance

The Farm-Maxx FSBM Series provides a simple and dependable solution for operators who need precise cutting without the size and complexity of larger mowing equipment. The double-action cutting system, adjustable cutting angle, rugged construction, and available hydraulic folding make these mowers particularly well suited for hay production and difficult-to-reach areas.

Choose from 60", 66", 84", or 108" working widths to match your tractor horsepower, property size, and mowing requirements.
