Phoenix T5 Series Rotary Tillers

$2,949.00
Size

Notify me when back in stock

Phoenix T5 Series Rotary Tillers

The Phoenix T5 Series Rotary Tillers are well suited for hobby farmers, fruit and vegetable growers, landscapers, nurseries, vineyards, and grounds-maintenance operations. Built for dependable performance and versatility, the T5 Series is ideal for a variety of soil-preparation applications.

Ideal Applications

  • Soil conditioning and weed control
  • Fertilizer incorporation
  • Seedbed preparation
  • Gardens and food plots
  • Landscaping and grounds maintenance
  • Fruit and vegetable production

Standard Features

  • Six tines per flange
  • Adjustable and offset lower and upper hitch blocks with up to 4" of offset
  • Drive housing oil-level sight glass for easier maintenance
  • Multi-position, heavy-duty zinc-plated jack stand
  • Durable powder-coat paint finish available in red or orange
  • Heavy-duty adjustable drag board with zinc-plated check chain
  • Series 4 PTO shaft with slip clutch
  • Category I 3-point hitch
  • 540 RPM PTO

Choose Your T5 Model

T5-52 — 52" Working Width
Best suited for smaller gardens, compact tractors, and property owners who want a maneuverable tiller.

T5-56 — 56" Working Width
A versatile, general-purpose option offering an excellent balance of coverage and maneuverability.

T5-60 — 60" Working Width
Best suited for larger gardens, food plots, and applications where additional working width helps cover more ground efficiently.

Phoenix T5 Series Specifications

Specification T5-52 T5-56 T5-60
Working Width 52" 56" 60"
Working Depth 7" 7" 7"
Recommended PTO HP 20–35 HP 20–35 HP 20–35 HP
PTO Speed 540 RPM 540 RPM 540 RPM
Hitch Category I Category I Category I
Blades Per Flange 6 6 6
Total Blades 36 42 42
Side Drive #80 Chain #80 Chain #80 Chain
PTO Shaft Series 4 Series 4 Series 4
Driveline Protection Slip Clutch Slip Clutch Slip Clutch
Rotor Flange Diameter 6.3" 6.3" 6.3"
Rotor Flange Thickness 0.4" 0.4" 0.4"
Approx. Weight 396 lbs 430 lbs 441 lbs



Description

Phoenix T5 Series Rotary Tillers

The Phoenix T5 Series Rotary Tillers are well suited for hobby farmers, fruit and vegetable growers, landscapers, nurseries, vineyards, and grounds-maintenance operations. Built for dependable performance and versatility, the T5 Series is ideal for a variety of soil-preparation applications.

Ideal Applications

  • Soil conditioning and weed control
  • Fertilizer incorporation
  • Seedbed preparation
  • Gardens and food plots
  • Landscaping and grounds maintenance
  • Fruit and vegetable production

Standard Features

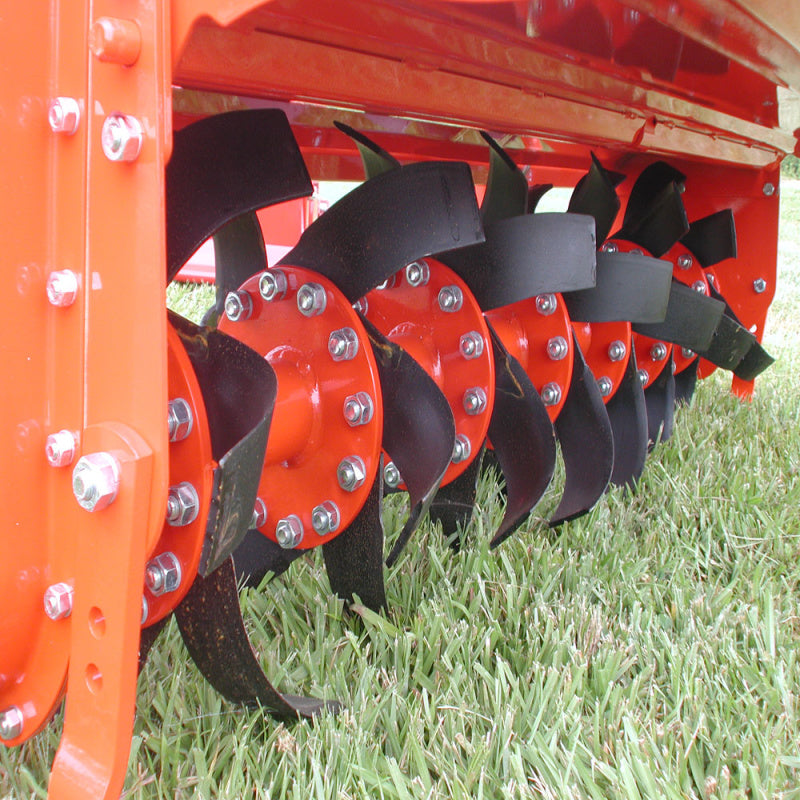

  • Six tines per flange
  • Adjustable and offset lower and upper hitch blocks with up to 4" of offset
  • Drive housing oil-level sight glass for easier maintenance
  • Multi-position, heavy-duty zinc-plated jack stand
  • Durable powder-coat paint finish available in red or orange
  • Heavy-duty adjustable drag board with zinc-plated check chain
  • Series 4 PTO shaft with slip clutch
  • Category I 3-point hitch
  • 540 RPM PTO

Choose Your T5 Model

T5-52 — 52" Working Width
Best suited for smaller gardens, compact tractors, and property owners who want a maneuverable tiller.

T5-56 — 56" Working Width
A versatile, general-purpose option offering an excellent balance of coverage and maneuverability.

T5-60 — 60" Working Width
Best suited for larger gardens, food plots, and applications where additional working width helps cover more ground efficiently.

Phoenix T5 Series Specifications

Specification T5-52 T5-56 T5-60
Working Width 52" 56" 60"
Working Depth 7" 7" 7"
Recommended PTO HP 20–35 HP 20–35 HP 20–35 HP
PTO Speed 540 RPM 540 RPM 540 RPM
Hitch Category I Category I Category I
Blades Per Flange 6 6 6
Total Blades 36 42 42
Side Drive #80 Chain #80 Chain #80 Chain
PTO Shaft Series 4 Series 4 Series 4
Driveline Protection Slip Clutch Slip Clutch Slip Clutch
Rotor Flange Diameter 6.3" 6.3" 6.3"
Rotor Flange Thickness 0.4" 0.4" 0.4"
Approx. Weight 396 lbs 430 lbs 441 lbs
